Advanced Module A9 — Deep Learning¶
Lab: training a simple MLP in PyTorch¶
Course: Advanced Quantitative Research Methods
Instructor: Prof. Dr. Christoph Weisser
Source: James, Witten, Hastie, Tibshirani & Taylor (2023), An Introduction to Statistical Learning, with Applications in Python, Springer. Companion code at statlearning.com.
Goal. Build, train and evaluate a small MLP on the Default data in PyTorch; check the deck’s parameter counts in code; and ask what the network actually buys over logistic regression. Requires pip install torch.
Setup¶
Run this cell once. The ISLP package can be installed with pip install ISLP. As an alternative, the same data sets are available as CSVs in the workspace’s ALL CSV FILES - 2nd Edition folder.
Google Colab: this notebook also runs on Colab out of the box — the setup cell below installs any missing packages and downloads the data automatically.
# --- Setup: runs locally AND on Google Colab --------------------------------
# Silence only the spurious 'encountered in matmul' RuntimeWarnings that the macOS
# Accelerate BLAS emits; real warnings (deprecations, model caveats) stay visible.
import warnings
warnings.filterwarnings('ignore', message='.*encountered in matmul', category=RuntimeWarning)
import importlib.util, os, subprocess, sys
IN_COLAB = 'google.colab' in sys.modules
def _ensure(pkg, import_name=None):
"""pip-install pkg (quietly) if its import is missing."""
if importlib.util.find_spec(import_name or pkg) is None:
subprocess.run([sys.executable, '-m', 'pip', 'install', '-q', pkg], check=False)
if IN_COLAB: # Colab ships numpy/pandas/sklearn/statsmodels; add course extras
for _pkg, _imp in [('ISLP', 'ISLP'), ('torch', 'torch')]:
_ensure(_pkg, _imp)
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
rng = np.random.default_rng(2024)
plt.rcParams['figure.dpi'] = 110
try:
from ISLP import load_data
HAVE_ISLP = True
except ImportError:
HAVE_ISLP = False
print('ISLP not installed; using CSV / URL fallbacks.')
# Local CSV location (repo layout first, then legacy paths, then a data/ cache).
_CANDIDATES = ['../../ALL CSV FILES - 2nd Edition',
'ALL CSV FILES - 2nd Edition',
'../../ALL CSV FILES - 2nd Edition', 'data']
CSV = next((p for p in _CANDIDATES if os.path.isdir(p)), 'data')
# GITHUB_RAW lets a fresh Colab runtime fetch any
# CSV that is neither in ISLP nor already local (spaces in the folder -> %20).
GITHUB_RAW = ('https://raw.githubusercontent.com/ChrisW09/Advanced-Quantitative-Research-Methods/main/'
'ALL%20CSV%20FILES%20-%202nd%20Edition')
# The four datasets NOT in the ISLP package -> load from the book's official
# site so the notebook works on a fresh Colab even before the repo is published.
KNOWN_URLS = {
'Advertising': 'https://www.statlearning.com/s/Advertising.csv',
'Heart': 'https://www.statlearning.com/s/Heart.csv',
'Income1': 'https://www.statlearning.com/s/Income1.csv',
'Income2': 'https://www.statlearning.com/s/Income2.csv',
}
def load(name, **read_csv_kwargs):
"""Load a course dataset. Order: ISLP package -> R datasets -> local CSV
-> official book URL -> your GitHub repo. Works locally and on Colab."""
if HAVE_ISLP:
try:
return load_data(name)
except Exception:
pass
if name == 'USArrests': # classic R dataset, not in ISLP
try:
import statsmodels.api as sm
return sm.datasets.get_rdataset('USArrests', 'datasets').data
except Exception:
pass
path = f'{CSV}/{name}.csv'
if os.path.exists(path): # running from the repo (local)
return pd.read_csv(path, **read_csv_kwargs)
remotes = ([KNOWN_URLS[name]] if name in KNOWN_URLS else []) + [f'{GITHUB_RAW}/{name}.csv']
for url in remotes: # fresh Colab: stream over https
try:
return pd.read_csv(url, **read_csv_kwargs)
except Exception:
continue
raise FileNotFoundError(
f"Could not load {name!r}. Put the CSV in '{CSV}/' or check your connection for the GITHUB_RAW fallback.")
1. Data¶
Default is 10,000 credit-card customers, of whom only about 3% actually default. Two things have to happen before a network sees data like this:
Standardise the predictors. Gradient descent uses one learning rate for every weight, so a predictor measured in tens of thousands (
income) and one measured in hundreds (balance) would effectively get different step sizes. The scaler is fitted on the training split only — fitting it on everything leaks test information into the scaling.Encode
studentas 0/1, because a network multiplies its inputs and cannot multiply the string'Yes'.
Default = load('Default')
Default['student_d'] = (Default['student'] == 'Yes').astype(int)
y = (Default['default'] == 'Yes').astype(int).values
X = Default[['balance', 'income', 'student_d']].values.astype('float32')
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
Xtr, Xte, ytr, yte = train_test_split(X, y, test_size=0.3, random_state=0)
scaler = StandardScaler().fit(Xtr)
Xtr = scaler.transform(Xtr).astype('float32')
Xte = scaler.transform(Xte).astype('float32')
print(Xtr.shape)
(7000, 3)
print(f'training rows: {Xtr.shape[0]:,} predictors: {Xtr.shape[1]}')
print(f'base rate (share who default): {y.mean():.3%}')
print(f'always-predict-"no" accuracy: {1 - y.mean():.3%}')
training rows: 7,000 predictors: 3
base rate (share who default): 3.330%
always-predict-"no" accuracy: 96.670%
2. PyTorch model¶
Three dense layers, 3 -> 32 -> 32 -> 2, with ReLU between them and dropout at 0.2 on each hidden layer. Two points worth pausing on:
The last layer emits 2 raw scores (logits), not probabilities.
nn.CrossEntropyLossapplies the softmax itself, so applying one here would apply it twice.nn.Dropoutis only active in training mode.model.eval()further down switches it off, which is why prediction is deterministic even though training is not.
try:
import torch
from torch import nn, optim
from torch.utils.data import DataLoader, TensorDataset
HAVE_TORCH = True
except Exception:
HAVE_TORCH = False
print('PyTorch not installed; pip install torch')
if HAVE_TORCH:
torch.manual_seed(1) # seed the weight init AND the loader shuffle below,
# so the AUC printed further down is reproducible
class MLP(nn.Module):
def __init__(self, p, k=32):
super().__init__()
self.net = nn.Sequential(
nn.Linear(p, k), nn.ReLU(), nn.Dropout(0.2),
nn.Linear(k, k), nn.ReLU(), nn.Dropout(0.2),
nn.Linear(k, 2))
def forward(self, x): return self.net(x)
model = MLP(Xtr.shape[1])
loss_fn = nn.CrossEntropyLoss()
opt = optim.Adam(model.parameters(), lr=1e-3)
3. Training loop¶
Forty passes over the training set in mini-batches of 64. Each batch repeats the same four steps — the loop every PyTorch model is trained by:
opt.zero_grad() (clear last batch’s gradients, which PyTorch accumulates rather than overwrites) → forward pass → loss.backward() (backpropagation) → opt.step() (Adam updates every weight).
Then model.eval() turns dropout off and torch.no_grad() stops PyTorch building a graph for gradients it will never use.
if HAVE_TORCH:
loader = DataLoader(
TensorDataset(torch.tensor(Xtr), torch.tensor(ytr).long()),
batch_size=64, shuffle=True)
for epoch in range(40):
for xb, yb in loader:
opt.zero_grad()
loss = loss_fn(model(xb), yb)
loss.backward()
opt.step()
model.eval()
with torch.no_grad():
proba = torch.softmax(model(torch.tensor(Xte)), dim=1).numpy()[:, 1]
from sklearn.metrics import roc_auc_score
print('AUC:', round(roc_auc_score(yte, proba), 3))
AUC: 0.943
Reading the output. AUC 0.943 on held-out customers. Read it against the base rate printed in section 1: accuracy would have flattered a model that simply never predicts default, whereas AUC asks whether the model ranks a true defaulter above a non-defaulter, which is the question a credit team actually has.
4. Counting the parameters¶
Exercises 10.3 and 10.4 in the deck are done by hand. Both are worth checking in code, because the arithmetic is the part everyone gets wrong and PyTorch will tell you the truth in one line.
The rule for a dense layer is one weight per input–output pair plus one bias per unit:
if HAVE_TORCH:
# Building layers draws random initial weights, and the worked solutions further
# down are seeded — so put the global RNG back exactly as we found it at the end.
_rng_state = torch.get_rng_state()
def dense_params(n_in, n_out):
"""Trainable parameters in a dense layer (weights + one bias per unit)."""
return n_in * n_out + n_out
# Exercise 10.3: 10 inputs -> 32 -> 16 -> 3 softmax outputs.
layers = [(10, 32), (32, 16), (16, 3)]
by_layer = [dense_params(a, b) for a, b in layers]
print('Ex 10.3 layer by layer:', ' + '.join(map(str, by_layer)), '=', sum(by_layer))
deck_net = nn.Sequential(nn.Linear(10, 32), nn.ReLU(),
nn.Linear(32, 16), nn.ReLU(),
nn.Linear(16, 3))
print(' PyTorch agrees:', sum(t.numel() for t in deck_net.parameters() if t.requires_grad))
print(' the MLP trained above:', sum(t.numel() for t in model.parameters() if t.requires_grad))
# Exercise 10.4: 32x32x3 image, 16 filters of 5x5, stride 1, no padding.
conv = nn.Conv2d(in_channels=3, out_channels=16, kernel_size=5)
n_conv = sum(t.numel() for t in conv.parameters())
side = (32 - 5) // 1 + 1
print(f'\nEx 10.4 conv output: {side}x{side}x16, parameters: {n_conv}')
n_out = side * side * 16
dense_equiv = 3 * 32 * 32 * n_out + n_out
print(f' a dense layer to the same {n_out:,} outputs: {dense_equiv/1e6:.1f} million '
f'({dense_equiv // n_conv:,}x more)')
print(f' after 2x2 max-pool (stride 2): {side//2}x{side//2}x16, 0 parameters')
torch.set_rng_state(_rng_state)
Ex 10.3 layer by layer: 352 + 528 + 51 = 931
PyTorch agrees: 931
the MLP trained above: 1250
Ex 10.4 conv output: 28x28x16, parameters: 1216
a dense layer to the same 12,544 outputs: 38.5 million (31,700x more)
after 2x2 max-pool (stride 2): 14x14x16, 0 parameters
Reading the output. 352 + 528 + 51 = 931, matching the deck, and PyTorch confirms it. The convolution needs 1216 parameters where a dense layer reaching the same 12,544 outputs would need 38.5 million — a factor of 31,700. That ratio is the argument for convolution: weight sharing, not depth, is what makes images tractable. Max-pooling adds no parameters at all; it only takes a maximum.
5. Does the network actually beat logistic regression?¶
A neural network is only worth its complexity if it beats the simpler model on held-out data. Default is the fairest possible test of that claim: three predictors, a boundary that Chapter 4 already showed is close to linear.
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import roc_auc_score
logit = LogisticRegression(max_iter=1000).fit(Xtr, ytr)
auc_logit = roc_auc_score(yte, logit.predict_proba(Xte)[:, 1])
print(f'logistic regression AUC: {auc_logit:.3f}')
if HAVE_TORCH:
auc_mlp = roc_auc_score(yte, proba)
print(f'MLP AUC: {auc_mlp:.3f}')
print(f'difference: {auc_mlp - auc_logit:+.3f}')
logistic regression AUC: 0.946
MLP AUC: 0.943
difference: -0.003
Reading the output. The two are within a few thousandths of each other, and the logistic regression is the better model as a deliverable: three coefficients you can read on the odds scale, fitted in milliseconds, with standard errors. This is the honest result on tabular data of this size and shape, and it is the ISLP position too — deep learning earns its keep where the signal is structured (images, sequences, text), not by default on three columns of credit data. Section 4’s convolution arithmetic shows where that structure pays.
6. Exercises¶
Replace the cross-entropy with
BCEWithLogitsLosson a single logit output; verify the AUC is unchanged.Add a learning-rate scheduler (
StepLR) and see whether 40 epochs still suffice.Widen the hidden layers from 32 to 128 and count the parameters before you train. Does the extra capacity change the AUC on three predictors?
Redo the Exercise 10.4 arithmetic for padding \(P = 2\) (
padding=2) and confirm your answer againstnn.Conv2d.Reproduce the section 5 comparison on an image data set (e.g. MNIST via
torchvision.datasets), where the answer should come out the other way.
Lecture exercises — worked Python solutions¶
The [Python]-tagged exercises from the lecture slides, solved step by step. Exercise 10.6 is pure NumPy; Extended Exercise 10.3 needs a PyTorch runtime (guarded below, so the notebook still runs without torch).
Exercise 10.6 — Softmax and cross-entropy [Python]¶
A 3-class classifier outputs logits z = (2.0, 1.0, 0.1) for one observation whose true label is class 0. Compute the softmax probabilities and the cross-entropy loss.
import numpy as np
z = np.array([2.0, 1.0, 0.1]) # raw scores (logits)
z = z - z.max() # subtract max for numerical stability
p = np.exp(z) / np.exp(z).sum() # softmax: turn logits into probabilities
ce = -np.log(p[0]) # cross-entropy for the true class y=0
print("softmax p =", np.round(p, 3)) # -> [0.659 0.242 0.099]
print("cross-entropy =", round(ce, 3)) # -> 0.417
# The shift by z.max() does not change p (softmax is shift-invariant) but
# avoids overflow in exp(); CE = -log(prob assigned to the correct class).
softmax p = [0.659 0.242 0.099]
cross-entropy = 0.417
Reading the output. The model puts 0.659 on the correct class, so the loss −log(0.659) = 0.417 is small but non-zero. Cross-entropy only looks at the probability of the true class; it → 0 as that probability → 1 and blows up as it → 0.

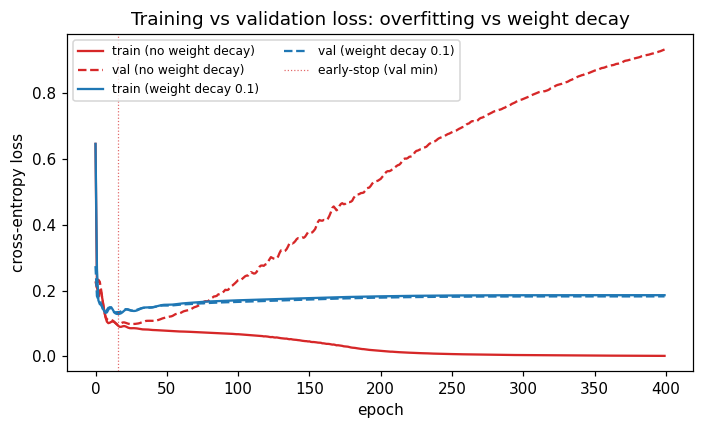

Extended Exercise 10.3 — Overfitting and regularisation [Python]¶
Fit a PyTorch MLP to a deliberately tiny Default training set (n=200), watch it overfit, then tame it with weight decay (L2). Needs a torch runtime — runs on Colab out of the box.
try:
import torch
from torch import nn, optim
HAVE_TORCH = True
except Exception:
HAVE_TORCH = False
print("PyTorch not installed - skipping (runs on Colab or after `pip install torch`).")
if HAVE_TORCH:
import numpy as np
from sklearn.preprocessing import StandardScaler
from sklearn.model_selection import train_test_split
Default = load("Default") # ISLP / local CSV / GitHub
Default["y"] = (Default["default"] == "Yes").astype(int) # 0/1 response
Default["student_d"] = (Default["student"] == "Yes").astype(int) # dummy-code
X = Default[["balance", "income", "student_d"]].astype(float).values
Xtr, Xte, ytr, yte = train_test_split(
X, Default["y"].values, train_size=200, # deliberately tiny train set!
random_state=0, stratify=Default["y"])
sc = StandardScaler().fit(Xtr) # scale using TRAIN stats only
Xtr, Xte = sc.transform(Xtr), sc.transform(Xte)
Xtr, Xte = map(lambda a: torch.tensor(a, dtype=torch.float32), (Xtr, Xte))
ytr, yte = map(lambda a: torch.tensor(a, dtype=torch.int64), (ytr, yte))
def curve(weight_decay, epochs=400): # returns per-epoch losses
torch.manual_seed(1) # reproducible weights
net = nn.Sequential(nn.Linear(3, 128), nn.ReLU(), # wide MLP, no dropout
nn.Linear(128, 128), nn.ReLU(),
nn.Linear(128, 2))
loss_fn = nn.CrossEntropyLoss() # softmax + log-loss in one
opt = optim.Adam(net.parameters(), lr=1e-2,
weight_decay=weight_decay) # L2 penalty lives here
tr, va = [], []
for _ in range(epochs): # full-batch gradient steps
opt.zero_grad(); loss = loss_fn(net(Xtr), ytr)
loss.backward(); opt.step() # backprop + update
with torch.no_grad(): # eval: no gradients
tr.append(loss.item())
va.append(loss_fn(net(Xte), yte).item())
return tr, va
tr0, va0 = curve(0.0) # unregularised -> overfits
tr1, va1 = curve(0.1) # strong weight decay (L2)
print(f"unreg : train {tr0[-1]:.3f} val-min {min(va0):.3f} "
f"@ep {int(np.argmin(va0))} val-final {va0[-1]:.3f}")
print(f"decay : train {tr1[-1]:.3f} val-final {va1[-1]:.3f}")
# Typical: unreg train -> ~0 but val U-turns upward (overfitting);
# decay keeps val lower and flat. Early stopping = val minimum.
# Two-curve overfitting diagnostic: train vs validation loss.
fig, ax = plt.subplots(figsize=(6.5, 4))
ax.plot(tr0, color="C3", label="train (no weight decay)")
ax.plot(va0, color="C3", ls="--", label="val (no weight decay)")
ax.plot(tr1, color="C0", label="train (weight decay 0.1)")
ax.plot(va1, color="C0", ls="--", label="val (weight decay 0.1)")
ax.axvline(int(np.argmin(va0)), color="C3", lw=0.8, ls=":", alpha=0.7,
label="early-stop (val min)")
ax.set_xlabel("epoch"); ax.set_ylabel("cross-entropy loss")
ax.set_title("Training vs validation loss: overfitting vs weight decay")
ax.legend(fontsize=8, ncol=2); plt.tight_layout(); plt.show()
unreg : train 0.002 val-min 0.096 @ep 16 val-final 0.934
decay : train 0.186 val-final 0.183
Reading the output. Without regularisation the training loss collapses toward 0 (the 128-128 net memorises the 200 points) while the validation loss bottoms out early and then climbs — textbook overfitting. Weight decay keeps the validation loss lower and flat, trading a little training fit for much better generalisation; early stopping at the validation minimum is a free alternative regulariser.
